产品展示

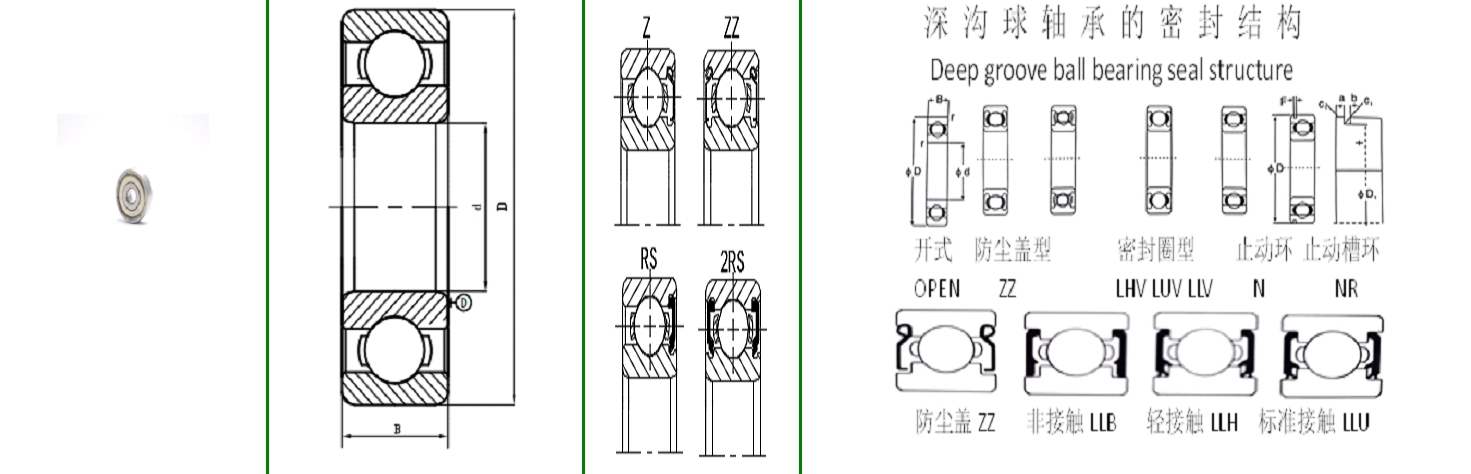

产品型号: 深沟球轴承
| 轴承 型号 | 基本尺寸mm | 额定负荷 N | 极限转速（rpm) | 轴承单套重量(g)（参考） | 型号 |
| 内径 | 外径 | 宽度 | 宽度1 | 倒角 | 倒角1 | 动负荷 | 静负荷 | 脂润滑 | 油润滑 |
| Cr | Cor | ZZ | RS | 开式 | ZZ |
| 635 | 2 | 5 | 1.5 | 2.3 | 0.08 | 0.08 | 169 | 50 | 85000 | - | 100000 | 0.12 | 0.17 | 682 |
| 692 | 6 | 2.3 | 3 | 0.15 | 0.15 | 330 | 98 | 75000 | - | 90000 | 0.28 | 0.38 | 692 |
| 602 | 7 | 2.8 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63000 | - | 75000 | 0.51 | 0.58 | 602 |
| 683 | 3 | 7 | 2 | 3 | 0.10 | 0.10 | 390 | 130 | 63000 | - | 75000 | 0.32 | 0.45 | 683 |
| 693 | 8 | 3 | 4 | 0.15 | 0.15 | 560 | 179 | 60000 | - | 67000 | 0.61 | 0.83 | 693 |
| 603 | 9 | 3 | 5 | 0.15 | 0.15 | 570 | 187 | 56000 | - | 67000 | 0.87 | 1.45 | 603 |
| 623 | 10 | 4 | 4 | 0.15 | 0.15 | 630 | 218 | 50000 | - | 60000 | 1.65 | 1.66 | 623 |
| 633 | 13 | 5 | 5 | 0.20 | 0.20 | 1300 | 485 | 40000 | - | 48000 | 3.38 | 3.33 | 633 |
| 684 | 4 | 9 | 2.5 | 4 | 0.10 | 0.10 | 640 | 225 | 53000 | - | 63000 | 0.63 | 1.01 | 684 |
| MR104 | 10 | 3 | 4 | 0.20 | 0.15 | 710 | 270 | 50000 | - | 60000 | 1.04 | 1.42 | MR104 |
| 694 | 11 | 4 | 4 | 05 | 15 | 90 | 345 | 48000 | - | 500 | 1.7 | 1.75 | 694 |
| 604 | 12 | 4 | 4 | 20 | 20 | 60 | 345 | 48000 | - | 56000 | 2.25 | 2.29 | 04 |
| 624 | 13 | 5 | 5 | 2 | 0.20 | 1300 | 485 | 40000 | - | 48 | 3.03 | 3.04 | 24 |
| 634 | 16 | 5 | 5 | 0 | 0.30 | 1730 | 670 | 3600、0 | - | 43000 | 5.24 | 5.2 | 34 |
| MR95 | 5 | 9 | 2.5 | 3 | 0.15 | 0.15 | 430 | 168 | 50000 | - | 60 | 0.5 | 0 | MR95 |
| 685 | 11 | 3 | 5 | 0.15 | 0.15 | 715 | 281 | 45000 | - | 53000 | 1.2 | 1.96 | 685 |
| 695 | 13 | 4 | 4 | 0.20 | 0.20 | 1080 | 430 | 43000 | 40000 | 50000 | 2.45 | 2.5 | 695 |
| 605 | 14 | 5 | 5 | 0.20 | 0.20 | 1330 | 505 | 40000 | 38000 | 50000 | 3.54 | 3.48 | 605 |
| 625 | 16 | 5 | 5 | 0.30 | 0.30 | 1730 | 670 | 36000 | 32000 | 43000 | 4.95 | 4.86 | 625 |
| 635 | 19 | 6 | 6 | 0.30 | 0.30 | 2340 | 885 | 32000 | 30000 | 40000 | 8.56 | 8.34 | 635 |
| MR106 | 6 | 10 | 2.5 | 3 | 0.15 | 0.15 | 495 | 218 | 45000 | - | 53000 | 0.56 | 0.68 | MR106 |
| 686 | 13 | 3.5 | 5 | 0.15 | 0.15 | 1080 | 440 | 40000 | 38000 | 50000 | 1.91 | 2.69 | 686 |
| 696 | 15 | 5 | 5 | 0.20 | 0.20 | 1730 | 670 | 40000 | 36000 | 45000 | 3.88 | 3.72 | 696 |
| 606 | 17 | 6 | 6 | 0.30 | 0.30 | 2260 | 835 | 38000 | 34000 | 45000 | 5.97 | 6.08 | 606 |
| 626 | 19 | 6 | 6 | 0.30 | 0.30 | 2340 | 885 | 32000 | 30000 | 40000 | 8.15 | 7.94 | 626 |
| 636 | 22 | 7 | 7 | 0.30 | 0.30 | 3300 | 1370 | 30000 | 28000 | 36000 | 14 | 14 | 636 |
| 687 | 7 | 14 | 3.5 | 5 | 0.15 | 0.15 | 1170 | 510 | 40000 | 34000 | 45000 | 2.13 | 2.97 | 687 |
| 697 | 17 | 5 | 5 | 0.30 | 0.30 | 1610 | 710 | 36000 | 28000 | 43000 | 5.26 | 5.12 | 697 |
| 607 | 19 | 6 | 6 | 0.30 | 0.30 | 2340 | 885 | 36000 | 32000 | 43000 | 7.67 | 7.51 | 607 |
| 627 | 22 | 7 | 7 | 0.30 | 0.30 | 3300 | 1370 | 30000 | 28000 | 36000 | 12.7 | 12.9 | 627 |
| 637 | 26 | 9 | 9 | 0.30 | 0.30 | 4550 | 1970 | 28000 | 22000 | 34000 | 24 | 25 | 637 |
| MR148 | 8 | 14 | 3.5 | 4 | 0.20 | 0.20 | 820 | 385 | 38000 | 32000 | 45000 | 1.86 | 2.16 | MR148 |
| 688 | 16 | 4 | 5 | 0.20 | 0.20 | 1610 | 710 | 36000 | 28000 | 43000 | 3.12 | 4.02 | 688 |
| 698 | 19 | 6 | 6 | 0.30 | 0.30 | 2240 | 910 | 36000 | 28000 | 43000 | 7.23 | 7.18 | 698 |
| 608 | 22 | 7 | 7 | 0.30 | 0.30 | 3300 | 1370 | 34000 | 28000 | 40000 | 12.1 | 12.2 | 608 |
| 628 | 24 | 8 | 8 | 0.30 | 0.30 | 3350 | 1430 | 28000 | 24000 | 34000 | 17.2 | 17.4 | 628 |
| 638 | 28 | 9 | 9 | 0.30 | 0.30 | 4550 | 1970 | 28000 | 22000 | 34000 | 28.3 | 28.6 | 638 |
| 689 | 9 | 17 | 4 | 5 | 0.20 | 0.20 | 1330 | 665 | 36000 | 24000 | 43000 | 3.53 | 4.43 | 689 |
| 699 | 20 | 6 | 6 | 0.30 | 0.30 | 1720 | 840 | 34000 | 24000 | 40000 | 8.45 | 8.33 | 699 |
| 609 | 24 | 7 | 7 | 0.30 | 0.30 | 3350 | 1430 | 32000 | 24000 | 38000 | 14.5 | 14.7 | 609 |
| 629 | 26 | 8 | 8 | 0.60 | 0.60 | 4550 | 1970 | 28000 | 22000 | 34000 | 19.5 | 19.3 | 629 |
| 639 | 30 | 10 | 10 | 0.60 | 0.60 | 5100 | 2390 | 24000 | - | 30000 | 36.5 | 36 | 639 |
